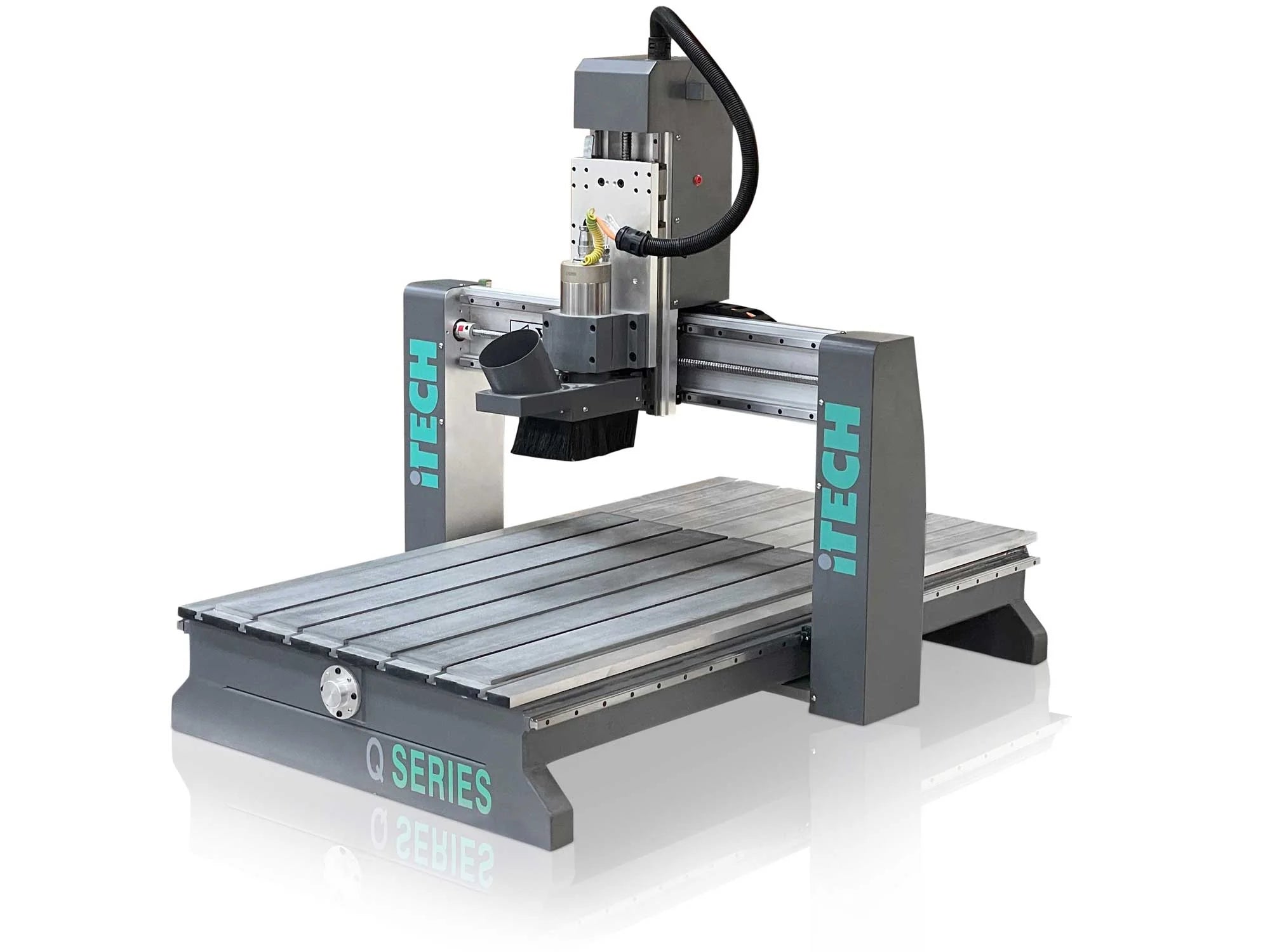

This new Q Series 'High Z' Desktop CNC Router with has increased the Z axis to give 250mm under the gantry, making it particularly suited to larger prototyping work, small batch production or advanced home workshops, The Q series CNC routers are a space-saving professional design at an affordable price with great features. These are excellent starter machines with heavy duty one piece, rigid, welded steel frames. This model has the increased 250mm height between bed and gantry giving even more creative possibilities.

3D modelling from solid... yes, you can do it with the easy to use high powered Vectric V Carve Pro software that we are currently bundling in with it. Easy to Design - Easy to Produce! If you have your own software such as Fusion 360 it will work with that too (just select the GRBL post processor)

These high precision desktop CNC routers can be used for all types of materials and are not limited to wood or one application. Do your own engravings? machining foam? making musical instruments? Aluminium? Plastics? Carving?..these machines can do just it, with outstanding precision. Cutting sign lettering? Our Q series tabletop CNC routers can make it happen.

The Q series, are high quality small CNC routers that feature a welded, one-piece steel frame, double linear guides with German made lead screw drive for quick assembly, long life and accurate alignment from the start.
As standard all Q series CNC routers have a powerful, high frequency 2.2 kW [3hp] 1ph router head, which is liquid cooled, keeping the spindle at a constant temperature and maintains longevity.

The machine has a larger than average diameter 100mm extraction port to help keep your work and workshop clean.
The handheld DSP pendent control screen displays the tool path and the G-code during design and production.
Programming and design are Easy to use full version of Vectric V Carve Pro CAD CAM Software.

  • X-Y-Z axis working area 600 x 900 x 250mm
  • clearance under gantry 250 mm
  • Machine size 990 x 1420 x 1080 mm
  • Repositioning resolution 0.02mm
  • X-Y-Z movement Ball screw drive/Germany
  • Max. speed 8 m/min
  • Max. cutting speed 6 m/min
  • Spindle 2.2kw
  • Spindle speed 24,000 rpm
  • Inverter power 2.2 kw
  • Dust Exhaust Connection 100 mm
  • Drive motors stepper
  • Working voltage 230v 1 phase 50 hz
  • Weight 210 kg
  • Command code G code
  • Computer interface USB 2.2
  • Collet Size ER 20 - 2mm - 12.7mm
  • Vectric VCarve Pro Software Included
  • Controls DSP A11 (Digital Signal Processor)
  • Packing dimensions 1500x1090x1150mm
  • Comes standard with: 1/8", 6mm & 1/2" Collet in tool box
  • Light LED Gantry mounted Yes
  • Air Blower for cooling & cleaning
  • Table or enclosure available as optional extra.Shipping & Delivery
